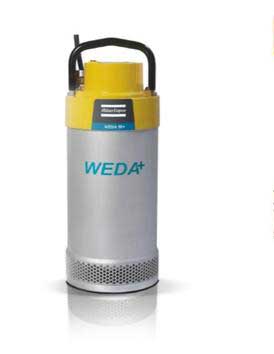

WEDA 50+ Electric Submersible Pump 4″

View List

The WEDA 50+ is a heavy duty 4″ (3″) dewatering pump with built in motor phase failure protection and correct rotation control. The unit is easily maintained with wear resistant diffuser and impeller materials.

The WEDA+ range features an improved aluminium alloy casing, further enhancing corrosion resistance and extending the life of the pump.

The WEDA 50+ is offered with 230V, 400V and 500V motor options.

Optional float and zinc anodes are available.

Designed for

  • Heavy duty pumping of abrasive liquids
  • Maximum submersible depth of 20m (66ft)
  • Maximum liquid temperature +40C (+104F)
  • Maximum density of liquid, 68 lbs/ft³ (1,100 kg/m³)
  • pH of liquid between 5-8
For technical help and advice we recommend visiting our specialist Pump Division.

Description

The WEDA pump range is designed for the performance, ease of use and reliability that you need. They are suitable for dewatering applications across multiple industries and are a cost effective solution to your dewatering requirements.

WEDA pumps are made for durability and promise optimal performance for your application.

The unique sealing system and modular design make this pump range one of the most flexible on the market.


WEDA Standard Features

WEDA Standard Features

Product Specifications

Specification


.tg {border-collapse:collapse;border-spacing:0;border-color:#aaa;}
.tg td{font-family:Arial, sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:0px;overflow:hidden;word-break:normal;border-top-width:1px;border-bottom-width:1px;border-color:#aaa;color:#333;background-color:#fff;}
.tg th{font-family:Arial, sans-serif;font-size:14px;font-weight:normal;padding:10px 5px;border-style:solid;border-width:0px;overflow:hidden;word-break:normal;border-top-width:1px;border-bottom-width:1px;border-color:#aaa;color:#fff;background-color:#f38630;}
.tg .tg-1wig{font-weight:bold;text-align:left;vertical-align:top}
.tg .tg-s6z2{text-align:center}
.tg .tg-u3lu{background-color:#FCFBE3;font-weight:bold;text-align:left}
.tg .tg-baqh{text-align:center;vertical-align:top}
.tg .tg-p0kl{background-color:#FCFBE3;font-weight:bold;text-align:left;vertical-align:top}
.tg .tg-lyaj{background-color:#FCFBE3;text-align:center}
.tg .tg-5ua9{font-weight:bold;text-align:left}
.tg .tg-hgcj{font-weight:bold;text-align:center}
.tg .tg-yq6s{background-color:#FCFBE3;text-align:center;vertical-align:top}
.tg .tg-dg7a{background-color:#FCFBE3;text-align:left;vertical-align:top}
.tg .tg-0lax{text-align:left;vertical-align:top}

WEDA 50+
Specification

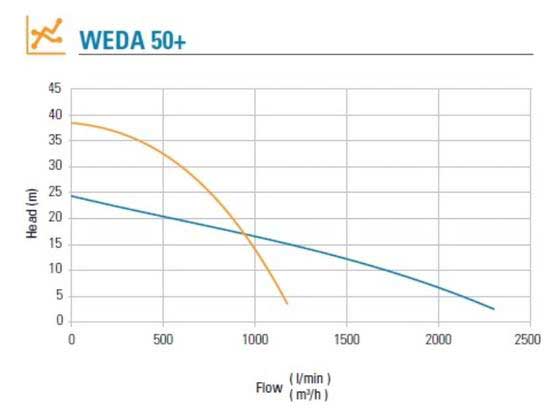

Unit Normal Head High Head
Maximum Head m 23 38
Maximum Flow l/min
m3/h
2425
146
1120
67
Rated Output kW 5.6 5.6
Maximum Power Output kW 6.6 6.6
Rated Current (110V) A
Rated Current (230V) A 16.2 16.2
Rated Current (400V) A 9.3 9.3
Rated Current (500V) A 7.3 7.3
Shaft Speed rpm 2880 2880
Discharge Connection inch 4″ (3″) 3″ (4″)
Maximum Solid Handling Size mm 8 8

Weight & Dimensions


.tg {border-collapse:collapse;border-spacing:0;border-color:#aaa;}
.tg td{font-family:Arial, sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:0px;overflow:hidden;word-break:normal;border-top-width:1px;border-bottom-width:1px;border-color:#aaa;color:#333;background-color:#fff;}
.tg th{font-family:Arial, sans-serif;font-size:14px;font-weight:normal;padding:10px 5px;border-style:solid;border-width:0px;overflow:hidden;word-break:normal;border-top-width:1px;border-bottom-width:1px;border-color:#aaa;color:#fff;background-color:#f38630;}
.tg .tg-s6z2{text-align:center}
.tg .tg-u3lu{background-color:#FCFBE3;font-weight:bold;text-align:left}
.tg .tg-baqh{text-align:center;vertical-align:top}
.tg .tg-lyaj{background-color:#FCFBE3;text-align:center}
.tg .tg-5ua9{font-weight:bold;text-align:left}
.tg .tg-hgcj{font-weight:bold;text-align:center}
.tg .tg-yq6s{background-color:#FCFBE3;text-align:center;vertical-align:top}

WEDA 50+
Weight & Dimensions
Unit Normal Head High Head
Weight kg 52 52
Length mm 720 720
Width mm 330 302
Circumference mm 278 278

Downloads for this product:

WEDA Electric Submersible Dewatering PumpsWEDA 50+ (60Hz) Data Sheet
