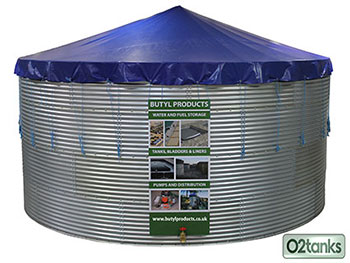

NEW RANGE: O2 Water Storage Tanks

View List

In  a fast evolving world where an enhanced responsibility to the environment has touched every organisation and every person to some degree, we’ve listened to our customers and worked with our engineers to bring our 2nd generation Oxfam type O2 tanks to the market.

The basic design and assembly remain the same as you’re used to, but the tanks are designed specifically with logistics in mind. We’ve made storage, container loading and volume, unloading and onward transportation much easier.

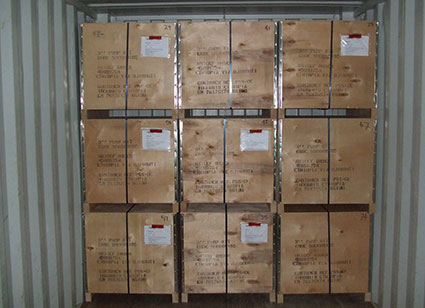

We have effectively doubled the amount of water storage capacity that can be loaded into a standard shipping container. The carbon footprint reduction is therefore quite substantial.

Individual tanks sizes are shown on our documentation in the downloads tab below.

Description

O2 tank order codes as follows:

T7 – 7,670 litres

T12 – 11,982 litres

T23 – 23,460 litres

T35 – 36,655 litres

T48 – 47,860 litres

T75 – 74,779 litres

T100 – 101,330 litres

Product Specifications

The T12 model O2 tank (our most popular size at 11,982 litre storage capacity) is designed to fit neatly into most of the racking systems in use around the world. The new range also features carry handles that enable the new tanks to be transported over broken ground using manpower alone. There is no longer a need for mechanical assistance.

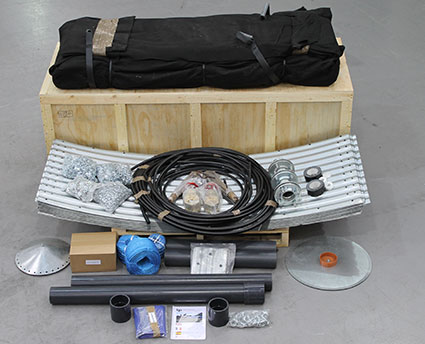

  • Corrugated, galvanised steel panels, punched and curved to suit the tanks size. All panels galvanised to G450. Supplied with guy ropes for added stability and a full set of galvanised bolts, nuts and washers for assembly.
  • WRAS approved 1.25mm thick scrim reinforced EPDM watertight inner liner, fully vulcanised with a separate 3000CBR puncture resistant Geotextile to protect the liner from below.
  • PVC pitched roof supported by a central pole, with reinforced eyelets for securing to the  tank.
  • Rubber liner repair kit.
  • PVC Roof repair kit.

Downloads for this product:

O2 Water Storage TankAid Spec Tanks: Installation Manual
