Gas Resistant Membrane, Made to Measure


Please enter your panel dimensions to calculate your price
Length:
Width:
Measurement:

Calculate Cost


0.60 Alumised Membrane, Gas Resistant Damp Proof Barrier
Tailor made panels to suit your requirement. Simply pop in your panel measurements in the boxes above to calculate your price, and we’ll make exactly what you need with no wasted material.

Complies with the latest codes of practise as published by BRE, CIRIA and BSI (BS 8485:2015),
and carries a relevant BBA certificate for use as a Gas Barrier. Suitable for use as gas protection for NHBC GREEN, AMBER 1 and AMBER 2 site characterisations.

  • Low permeability to Carbon Dioxide, Methane & Radon
  • Approved for use in NHBC Amber 2 applications
  • Manufactured in accordance with ISO 9001, ISO 14001 & SHAS 18001
  • Multi layer reinforced LDPE membrane with aluminium core
  • Certified by the British Board of Agrément under certificate number 20/5733
  • High puncture and tear resistance

If your panels are irregular shapes or you require pipe collars / top hats / pipe sleeves, please Email Us and attach your sketch or drawing detailing where they need to be placed and we’ll be pleased to provide a bespoke quotation for your exact requirements.

Product Code: BLP4JUZR10BUTYL

Description

Building regulations require that proper preventative measures be taken to avoid danger to health and safety when building on contaminated land. Our gas barrier systems offer a safe solution for the protection of buildings and their occupants constructed in areas where gases are present – such as disused mines, coalfields, industrial and landfill sites.

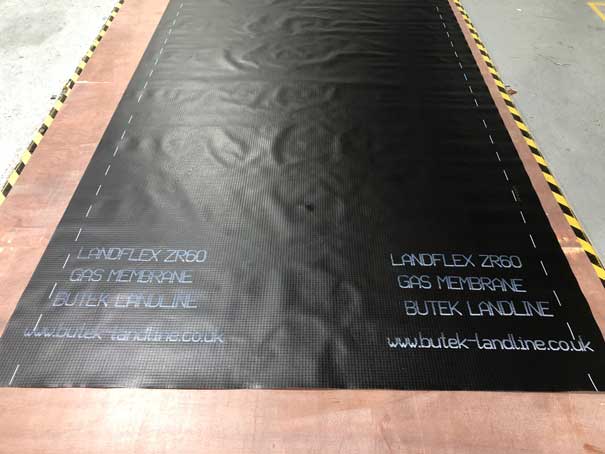

Landflex ZR60 gas resistant membrane is recommended for use where medium to high concentrations of radon gas occur, or where methane, carbon dioxide and other gases are present. It can also serve as a damp proof membrane in solid concrete floors to protect structures against moisture from the ground.
Manufactured from multi-layer low density polyethylene (LDPE) with a multi filament polyester (1670 dtex) reinforcing grid between to provide high strength and tear resistance, the membrane also incorporates an aluminium foil core for low gas permeability.

Landflex ZR60 is manufactured to last the lifetime of the construction provided it is correctly installed by trained technicians and not subject to mechanical damage by other building operations. The ZR60 gas protection membrane has high puncture resistance and will not be damaged by normal footfall or site traffic on smooth or blinded surfaces.

Product Specifications

A multi layer, low density polyethylene membrane, reinforced with a polypropylene reinforcing grid with an integral aluminium foil. Specially designed and manufactured to perform as a Methane, Carbon Dioxide, Radon, Ground Gas, VOC, Air & Moisture protection system.



Bespoke Product

Gasproof Barrier, Made to Measure

Downloads for this product:

Landflex ZR60 Gas Resistant Barrier Membrane
