General Purpose Diesel Driven Pump Kit 3″

View List

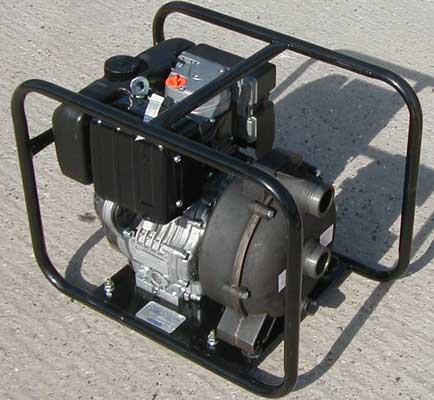

A general purpose 3″ x 3″ self priming centrifugal pump that can be used for dewatering (both fresh & seawater), chemical handling and potable water supply. The pump flow rates shown are at 20m TMH (Total Manometric Head).

Pump Features:

  • Electric start
  • Lightweight industrial air cooled single cylinder diesel engine
  • Cast iron construction

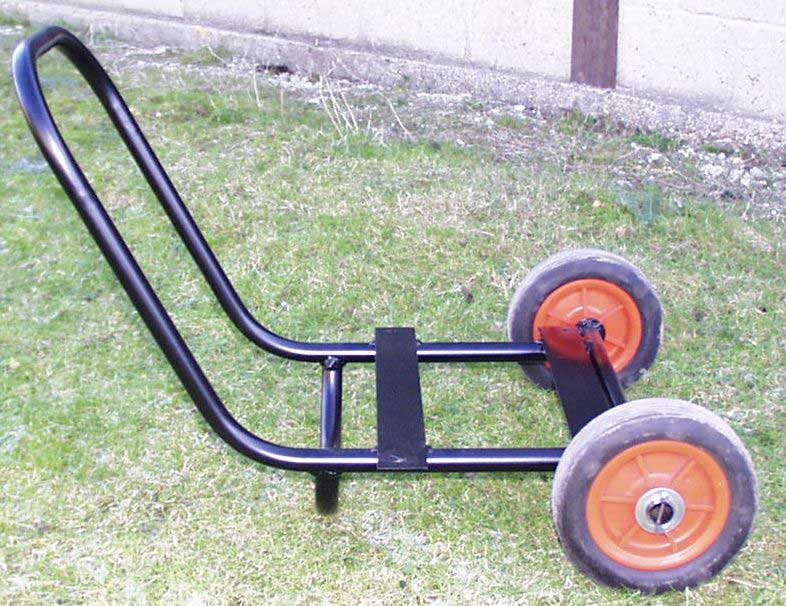

  • Frame mounted to 2 wheeled site trolley
  • Solids handling to 18mm Ø
  • Self priming to 7m
For technical help and advice we recommend visiting our specialist Pump Division.

This pump kit is supplied in accordance wit the following agency specifications:

UNICEF_SM



Description

UNICEF order codes:

S0009104 (40m³/hour)

S0009105 (50m³/hour)

Product Specifications

Pump Kit supplied with:

  • Semi rigid hose, 5m
  • Delivery hose, 20m
  • Stainless steel strainer
  • Non return valve
  • Installation, operation and maintenance tool kit
  • 4 Litre fuel container
  • Spare parts kit for 2,000 hours operation including filters, seals and injectors

Additional Packing Information:

42 Units will fit into a 20ft container

84 Units will fit into a 40ft container

Weight 151 kg
Dimensions 76 × 76 × 74 cm
