Gannet Series Heavy Duty Trash Pumps

View List

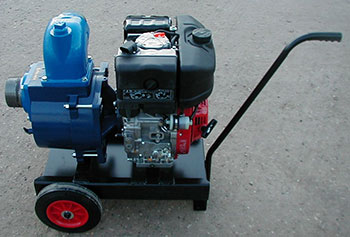

A portable self priming centrifugal trash pump suitable for heavy duty dewatering, desludging, raw water supply and general purpose pumping. Three pumps in this range offer 2″, 3″ and 4″ Ø options.

Powered by a Lombardini lightweight industrial air cooled single cylinder diesel engine. The pump offers recoil start, a 4 hour fuel tank, silencer, throttle control and dry air type oil and fuel filters.

Self priming to 7m with a solids handling capabilities of up to 50mm Ø, the pump is securely fixed on anti vibration mounts inside a steel rollover frame or on a steel baseplate / skid.

Supplied with pump and engine operating and instruction manuals.

For technical help and advice we recommend visiting our specialist Pump Division.

This pump series can be supplied in accordance with the following agency specifications:

International Rescue Committee Logo

Description

International Rescue Committee (IRC) order codes:

GANNET 251  Trash Pump – 30m³/hour @ 15m head (TDH to 30m). <25mm Solids handling capability

GANNET 351 – Trash Pump 45m³/hour @ 15m head (TDH to 30m). <32mm Solids handling capability

GANNET 451 – Trash Pump 80m³/hour @ 15m head (TDH to 30m). <50mm Solids handling capability

Please add a note to this item in your basket if you would like us to quote for any of the options  listed in the specifications tab.

Product Specifications

The Gannet series trash pumps benefit from:

  • An aluminium casing with cast iron impeller & volute
  • Rigid monobloc design
  • Integral non return valve
  • Carbon / Carbide mechanical seal
  • Easy maintenance with just one tool (supplied)
  • Coarse suction hose filter & clip
  • Removable screwed cast iron BSP male connections
  • Rugged steel rollover frame or steel baseplate / skid

Model

Size

Engine

Starting

Max Flow (l/m)

Max Head (m)

Solids (mm)

L x W x H (cm)

Weight (kg)

Gannet 251

2”

Lombardini15LD225

Recoil

750

33

25

60 x 42 x 49

51

Gannet 351

3”

Lombardini15LD315

Recoil

1100

31

32

60 x 42 x 49

60

Gannet DLO75

3”

Lombardini15LD400

Recoil

1420

27

38

72 x 55 x 61

93

Gannet 451

4”

Lombardini15LD440

Recoil

2000

30

50

73 x 39 x 62

103

Spares Options

Electric Start, Export Packing, Pump and Engine Spares Kit, Hose Kit, Quick Couplings, Site Trolley / Trailer

Downloads for this product:

Gannet 251 Trash Pump InformationGannet 351 Trash Pump InformationGannet 451 Trash Pump InformationGannet DLO75 Trash Pump Information
