‘Easy Up’ Spill Containment Berm: Key

View List


Suitable for all petrochemicals in all climates with a temperature range between -32 and +65C

Manufactured from hydrocarbon resistant nylon reinforced Landflex 90 material

Rapidly deployed by three people in less than one hour

Easily transported and fully re-usable at different locations

All berms are packed in an ISPM15 heat treated plywood case suitable for export

Description

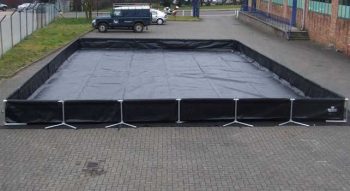

Our Easy Up Berm is a secondary containment solution that’s ideal for use in harsh conditions and designed to protect surrounding ground areas against spillage  from containers filled with hazardous fuels, oils, chemicals and acids up to a maximum capacity of 100,000 litres. The berm is easily transported from location to location and is fully re-usable. Easy Up berms are manufactured in a variety of commonly used sizes, but we are also able to manufacture to bespoke sizing requirements if there is a need.

Please contact us with your sizing / capacity needs and we will be pleased to provide a quotation.

Product Specifications

The Frame: Robust steel framework incorporating 26mm Ø (medium duty) or 42mm Ø (heavy duty) galvanised steel pipe with cast aluminium fittings secured and locked into position by hexagon socket screws.

The Berm: Fabricated from nylon reinforced Elvaloy 0.90mm thick with a Hydrostatic resistance of >540N / cm² / >8000psi  and Puncture resistance of 1150N.



Downloads for this product:

Butyl Easy Up Berm InformationEasy Up Berm Material Specification
